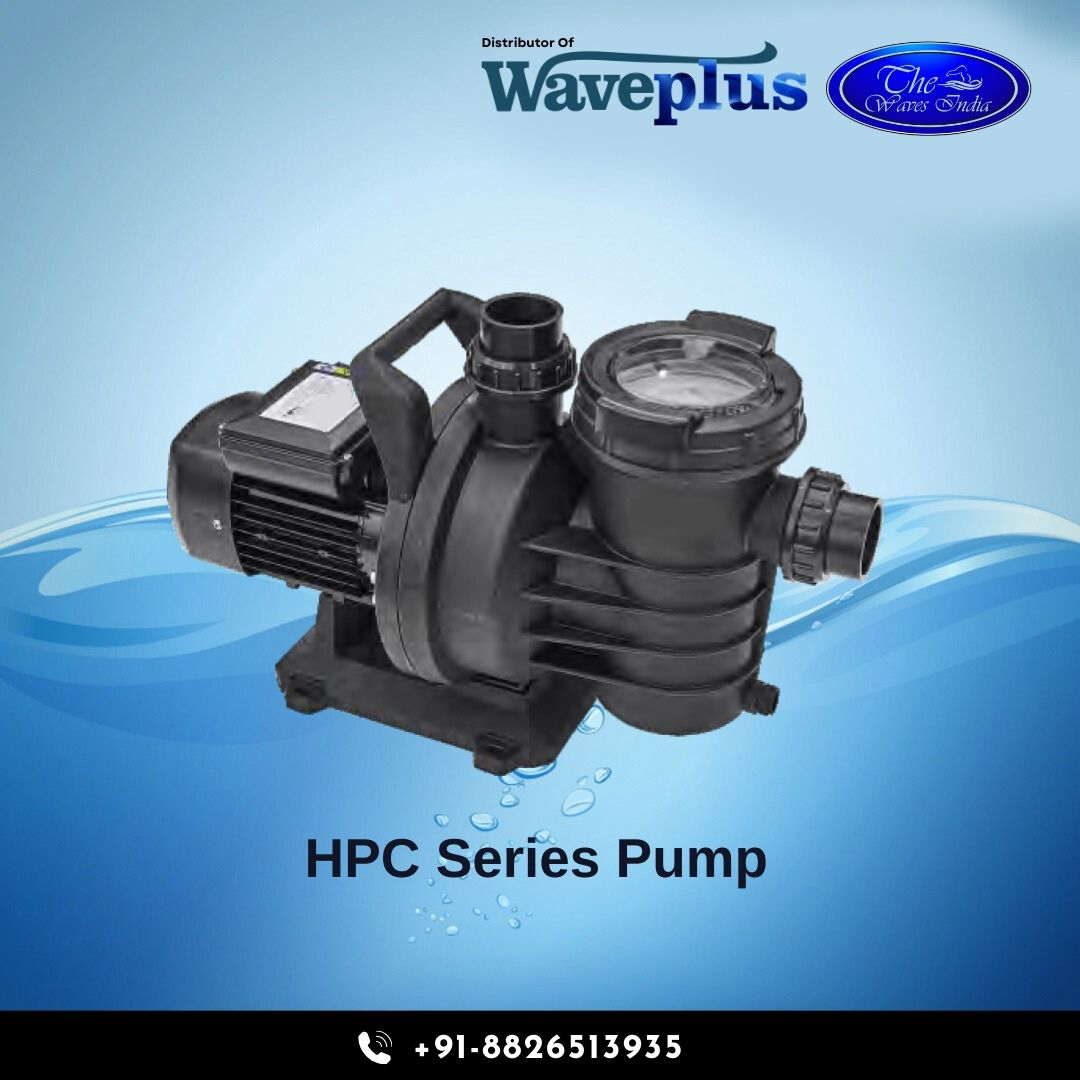

NEW "HPC" series swimming pool pump is designed for medium head installation in medium or domestic pool 1.5 inch suction and discharge port with transparent lid. It operates a low decibel and easy maintenance.
| Technical Characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Qmax (l/min) | Hmax (m) | vHz | Power(p1) | Amps | Packing size (mm) | Kg | ||
| KW | HP | ||||||||
| WPPC - 050 | 195 | 7 | 220-240/50 | 0.37 | 0.75 | 1.9 | 48.5 OR 50 | 9.3 | |
| WPPC - 075 | 255 | 10 | 220-240/50 | 0.55 | 0.75 | 2.7 | 48.5 OR 50 | 9.5 | |
| WPPC - 100 | 340 | 12.5 | 220-240/50 | 0.75 | 1.0 | 3.8 | 48.5 OR 50 | 9.7 | |
| WPPC - 150 | 390 | 17.5 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5 OR 50 | 10.5 | |
| WPPC - 200 | 470 | 18.5 | 220-240/50 | 1.5 | 2.0 | 7.0 | 48.5 OR 50 | 11.5 | |
